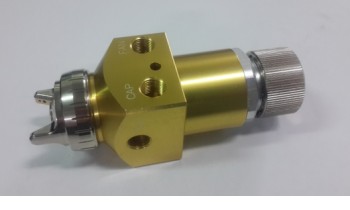

 YRA-101 Automatic Spray Gun
 |
|
| |
| Fluid Tip Size (I.D.) mm |
0.8 |
| Air Cap Set |
E2P |
| Atomizimg air pressure (bar) |
2.2 |
| Fan air pressure (bar) |
2.2 |
| Air consumption (l/min) |
270 |
| Air connection |
1/8" |
| Fluid connection: |
1/8" |
| Weight (g) |
290 |
|
 Atomization air and pattern air are supplied via separate circuits. The structure enables remote operation of individual circuits.
The forged gun body and stainless steel nozzle/needle provide a long working life in tough working conditions.
The gun uses the very latest advances in atomizing technology to provide users with a cost effective air atomizing spray gun.
The compact body is easy to install in limited space.
Two blocking holes. One for new material and the other for recycled materials that enable to clean the hose easily.
The automatic spray gun is available in various sizes which satisfy the clients completely.
|

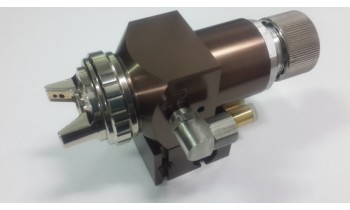

YRA-
101B
Automatic Spray Gun
 |
|
| |
| |
| Fluid Tip Size (I.D.) mm |
0.8 |
| Air Cap Set |
E2P |
| Atomizimg air pressure (bar) |
2.7 |
| Fan air pressure (bar) |
2.2 |
| Air consumption (l/min) |
270 |
| Air connection |
1/8" |
| Fluid connection: |
1/8" |
| Weight (g) |
290 |
|
The gun body and the mounting block can be attached/detached with a single bolt. The mounting block and hose don't need to be removed from the spray machine for services. So, it's easy to position when the mounting block is re-mounted after maintenance. Minimizing line downtime.
|

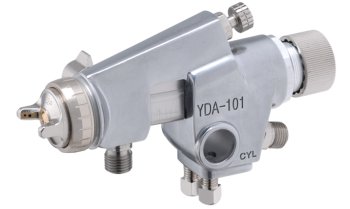

YDA-101 Automatic Spray Gun
 |
| Fluid Tip Size(mm) |
1.3mm |
| Working Air Pressure (Bar) |
3.0-4.0 |
| Air Inlet |
1/4" |
| Fluid Inlet |
1/4" |
Air Consumpition
L/min(CFM) |
270 (9.5) |
| Pattern Width mm (in) |
230 (9.1) |
| Weight (g) |
450 |
|
| |
Optional nozzle size: 0.8mm, 1.0mm, 1.5mm, 1.8mm and 2.0mm
a small automatic spray gun that to be used with auto spray macine and spraying robot.
Applicable to spray tiny items such as hardware, toy, furniture, car¡Ketc in the mass production line.
Able to handle the most difficult water borne and solvent materials with minimum overspray. |
| |

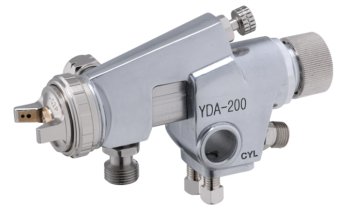

YDA-200 Automatic Spray Gun
 |
|
| |
| |
| Fluid Tip Size(mm) |
1.2mm |
| Working Air Pressure (Bar) |
3.0-4.0 |
| Air Inlet |
1/4" |
| Fluid Inlet |
3/8" |
Air Consumpition
L/min(CFM) |
530 (18.7) |
| Pattern Width mm (in) |
400 (15.7) |
| Weight (g) |
490 |
|
Optional nozzle size: 1.4mm, 1.5mm, 1.6mm, 1.8mm, 2.0mm and 2.5mm
Full size automatic air spray gun for automaticed painting equipment, receiprocators or robotic painting.
Applicable to spray large items such as building material hardware, handicraft, car, furniture¡Ketc in the mass production line.
Able to handle the most difficult water borne and solvent materials with minimum overspray.
|
| |

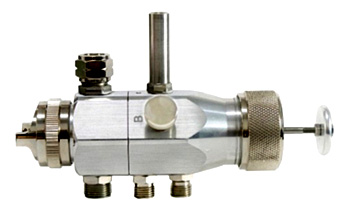

YD-500 Automatic Spray Gun
 |
| Fluid Tip Size(mm) |
1.5mm |
| Working Air Pressure (Bar) |
1.0-6.0 |
| Air Inlet |
1/4" |
| Fluid Inlet |
3/8" |
| Control Air Pressure |
min 4 bar |
| Material pressure |
max. 10 bar |
| Atomizing Air |
max. 8 bar |
Air Consumption m /h |
18.0-39.0 |
| Weight (g) |
680 |
|
| |
Available nozzle sizes: 1.2mm, 1.4mm, 1.5mm and 1.8mm
All parts that come into contact with the media are made of stainless steel.
Allowing water-based paints or aggressive media.
Automatically turns the atomising air on and off in keeping with the material supply.
Highly recommended for operations where the spraying process is frequently interrupted.
Material re-circulation version also available. |
|
